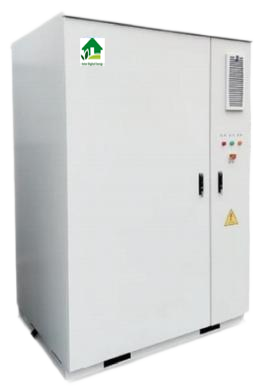

工商业储能一体柜
Industrial and commercial energy
storage integrated cabinet

Product Details

/uploadfile/editor/20241130144938_89192.docx

The energy storage system provides users with peak valley arbitrage mode and stable power quality management.

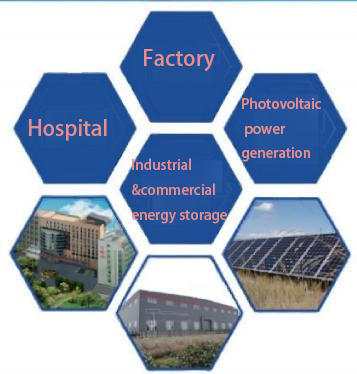

The product is mainly used in large-scale industrial, commercial, and residential fields, and has been extended to emerging applications such as communication base station backup power, UPS backup power, island micro-grids, and intelligent charging stations for photovoltaic storage and inspection. It helps to achieve electricity coverage in areas without power grids, reduce social electricity costs, improve electricity security on the electricity side, and maximize energy utilization to achieve social and economic benefits.

项目Item	标准 Standard
型号 Model	户用储能-01 Household energy storage-01
电池容量Battery capacity	280Ah
电池类型Battery type	磷酸铁锂Lithium iron phosphate
标称电压Nominal voltage	DC768V
电压范围Voltage range	DC600V-864V
标称能量Nominal energy	215KWh
防护等级Protection level	IP54
电芯均衡Cell equalization	主动均衡Active equalization
额定充放电倍率Rated charge discharge rate	≤0.5P
组合方式Combination method	5*1P48S
工作温度Working temperature	-30℃--55℃
消防喷剂 Fire spray	七氟丙烷/全氟已酮Heptafluoropropane/Perfluorohexane
认证方式Authentication method	人脸识别/二维码/C卡/密码Facial recognition/QR code/IC card/password
主要材质Main materials	镀锌钢板Galvanized steel sheet
表面涂层Surface coating	静电喷涂/氟碳漆Electrostatic spraying/fluorocarbon paint
温控方式 Temperature control method	风冷Air cooling
消防检测Fire detection	温度/烟雾/明火/可燃气体Temperature/Smoke/Open Flame/Combustible Gas

/uploadfile/editor/20241130141612_94635.docx
